Electric Launch

Overview

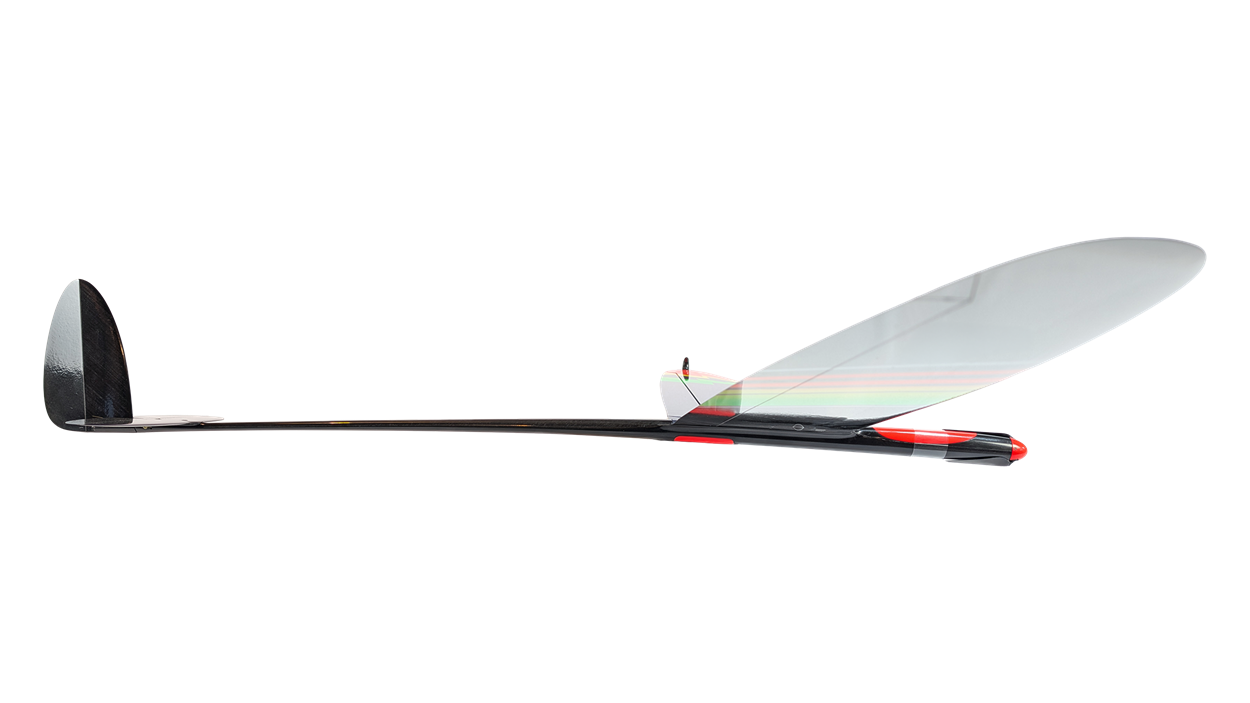

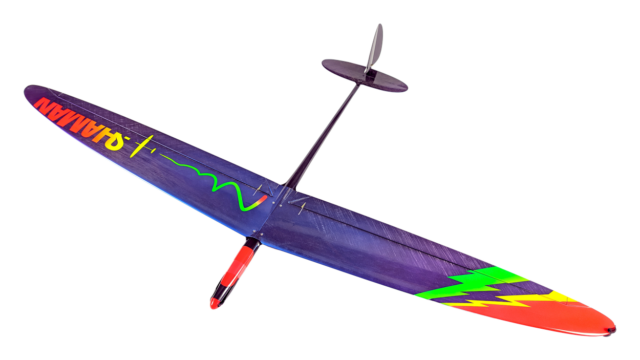

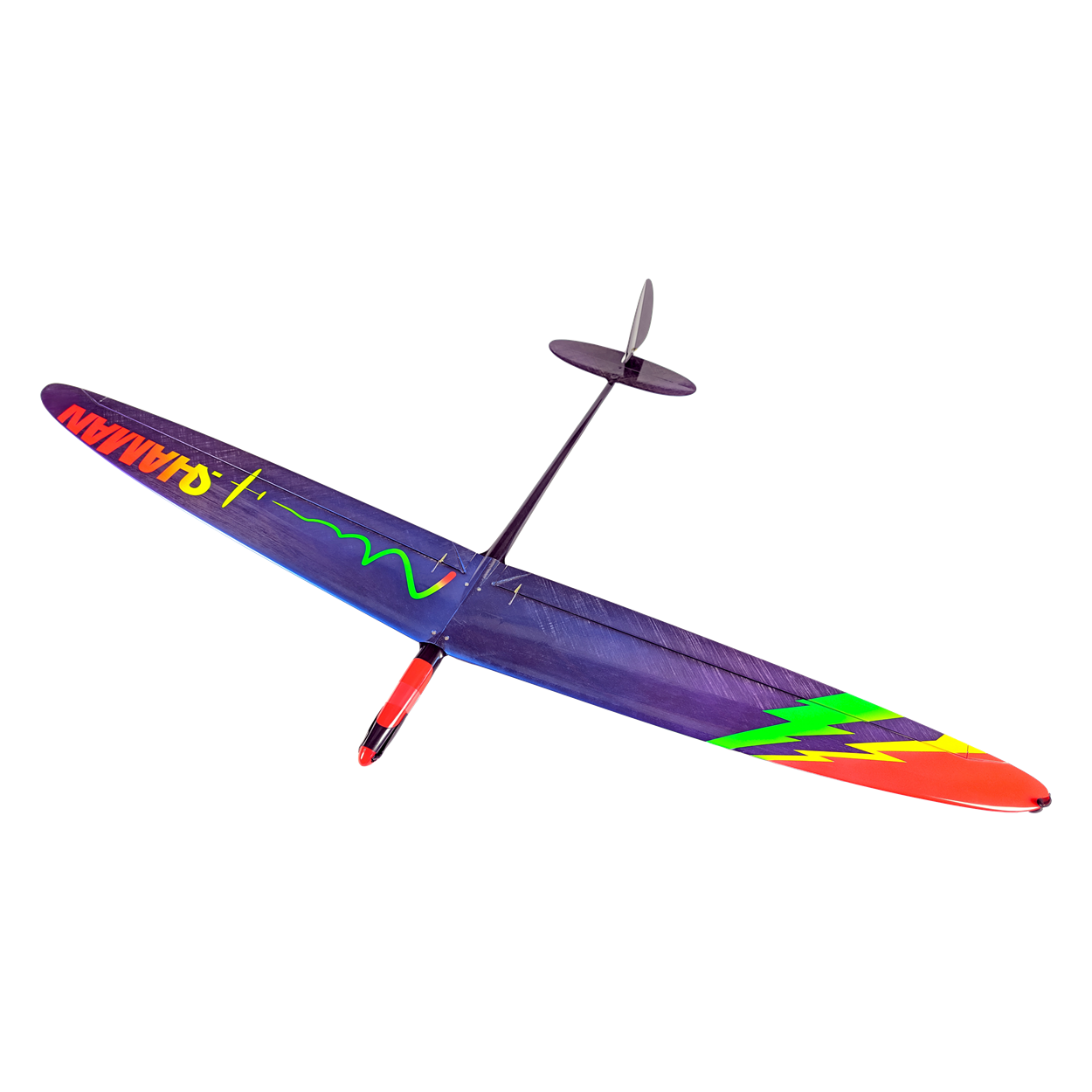

F5K Shaman is the electric evolution of the Shaman platform, built around the proven Shaman wing configuration.

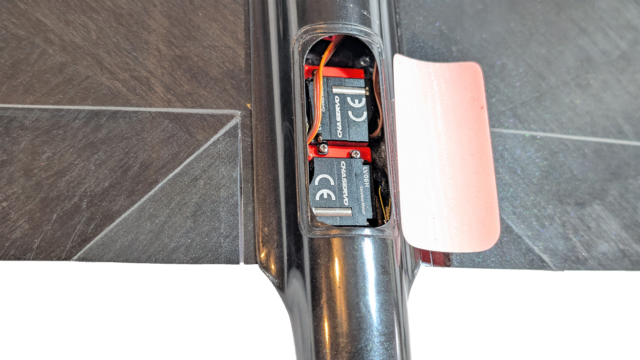

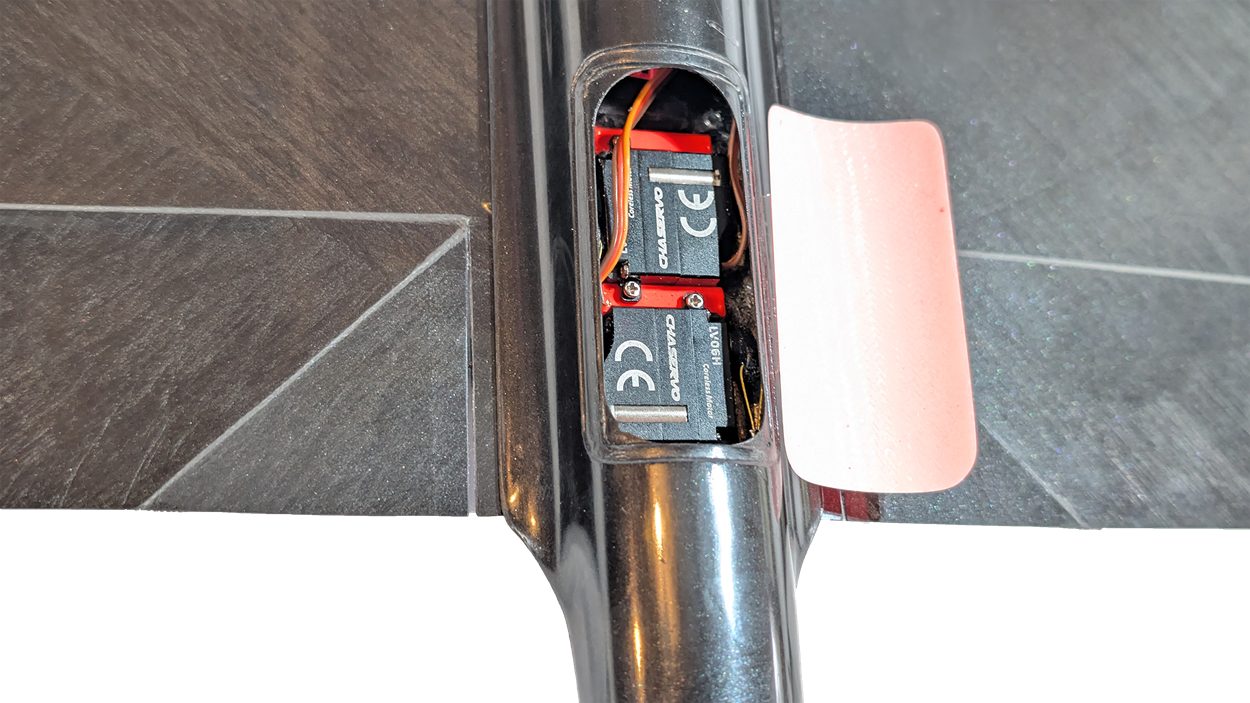

The fuselage is specifically optimized for electric setup, with carefully organized internal layout for servos, receiver, motor and battery. The design allows straightforward installation, clean wiring management and precise balancing.

The air-frame maintains the same aerodynamic philosophy whole adapting the platform for competitive launch.

Power System

An optional full molded carbon set is available, including:

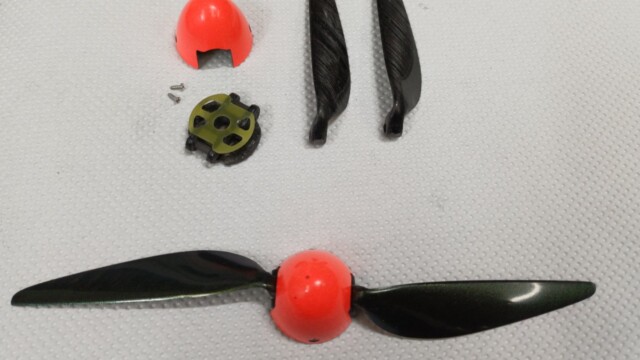

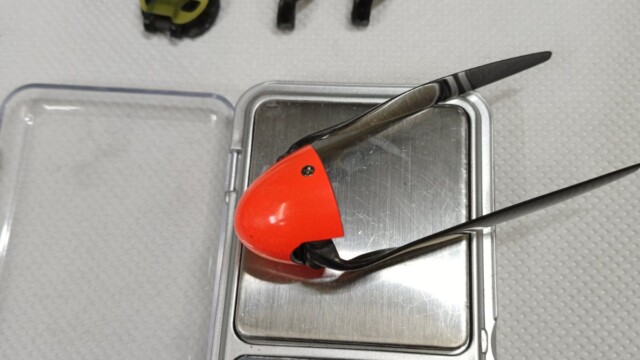

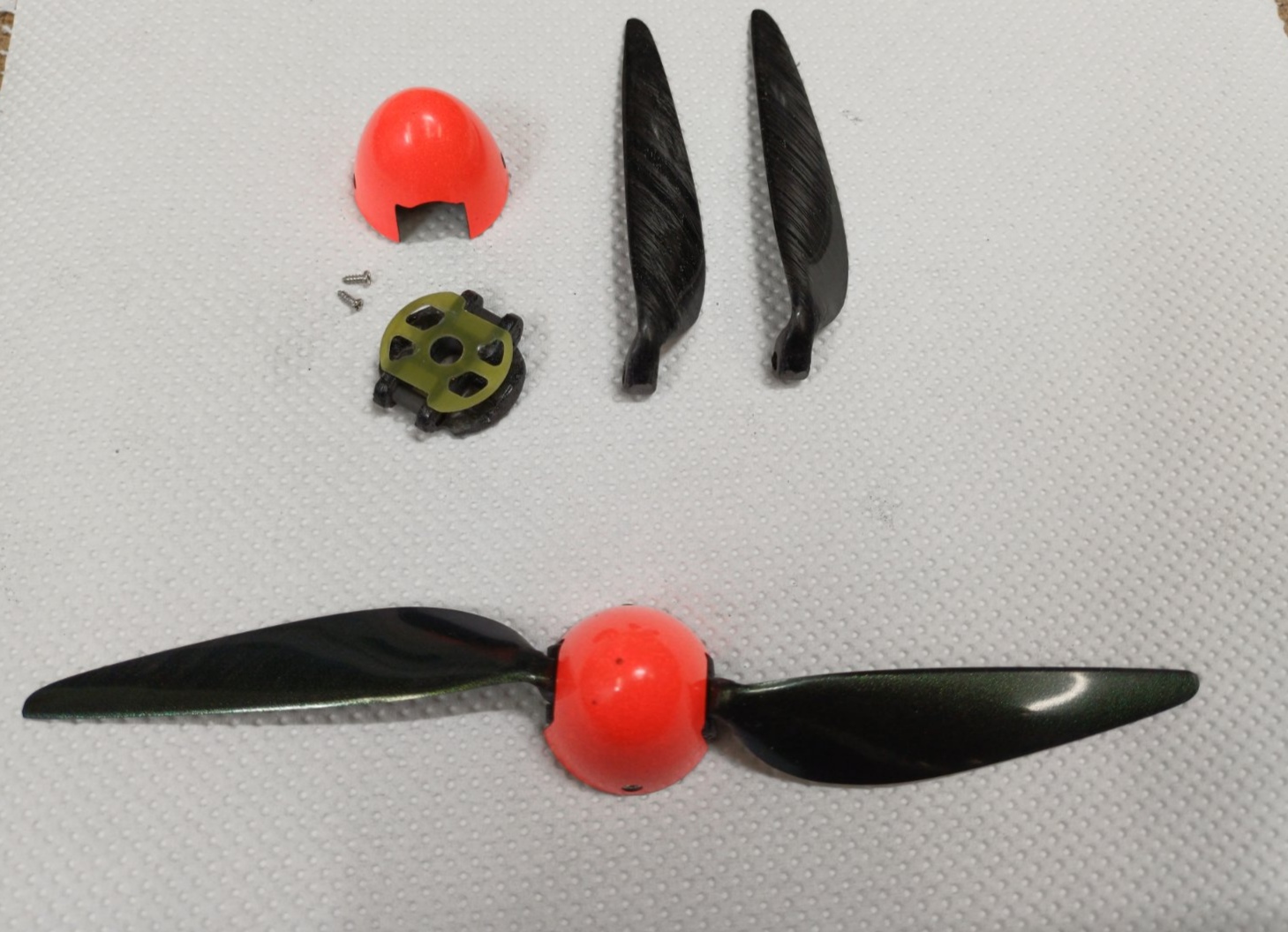

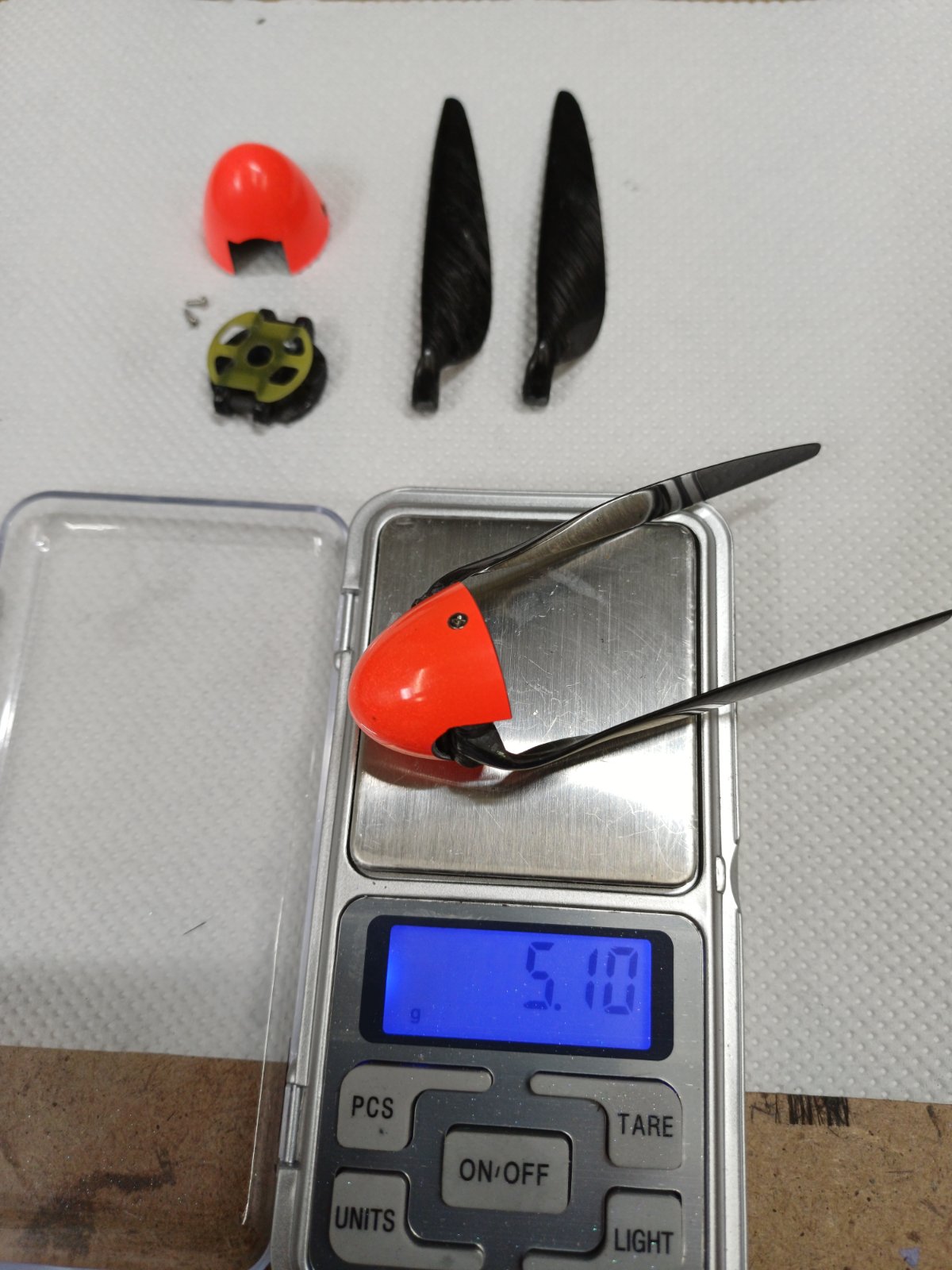

25mm carbon spinner
Carbon propeller specifically calculated and designed for two-cell battery configuration, 1507-3650KV motor, current 16A

The system is optimized for efficiency, smooth motor runs and consistent climb performance.

Modular Advantage

One of the key advantages of the F5K Shaman is platform compatibility.

The wings and spring connector system are identical to the Shaman F3K version. With a single wing set and two different fuselages (F3K and F5K), you can effectively operate two distinct aircraft configurations.

The modular approach reduces cost, simplifies logistics and allows pilots to switch disciplines without duplicating major components.

1of7

Technical Description

Two-piece wing with solid PMI core and carbon skin
Carbon joiner between wings
Triangular aileron transitions

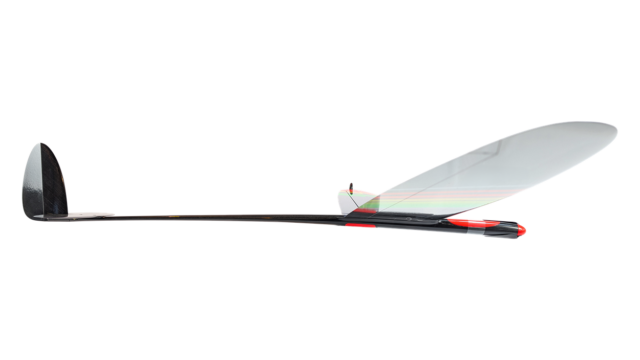

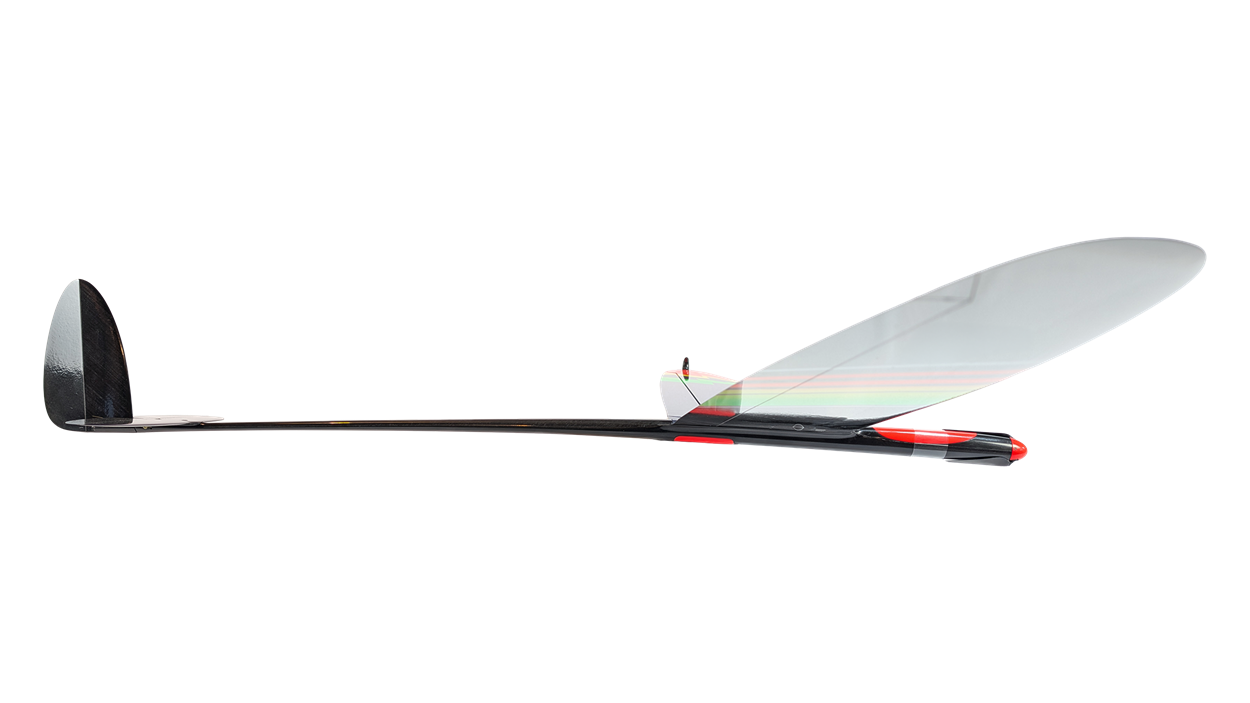

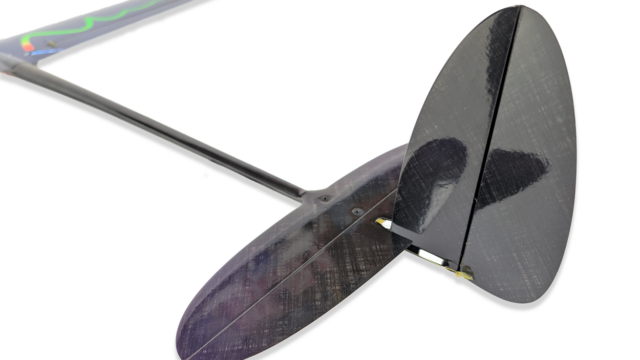

Banana-shaped fuselage silhouette
Wing mounted above the fuselage, fixed with 4 screws
25mm carbon spinner and special carbon propeller
Carbon D-Box structure
Electric spring connector system for fast assembly an secure contact
Requires horizontal wing servos up to 8mm thickness

Layup Options

Standard Version

IMS65 30g carbon in two layers

Included

Each Shaman F5K comes with:

Factory-prepared wings for servo installation

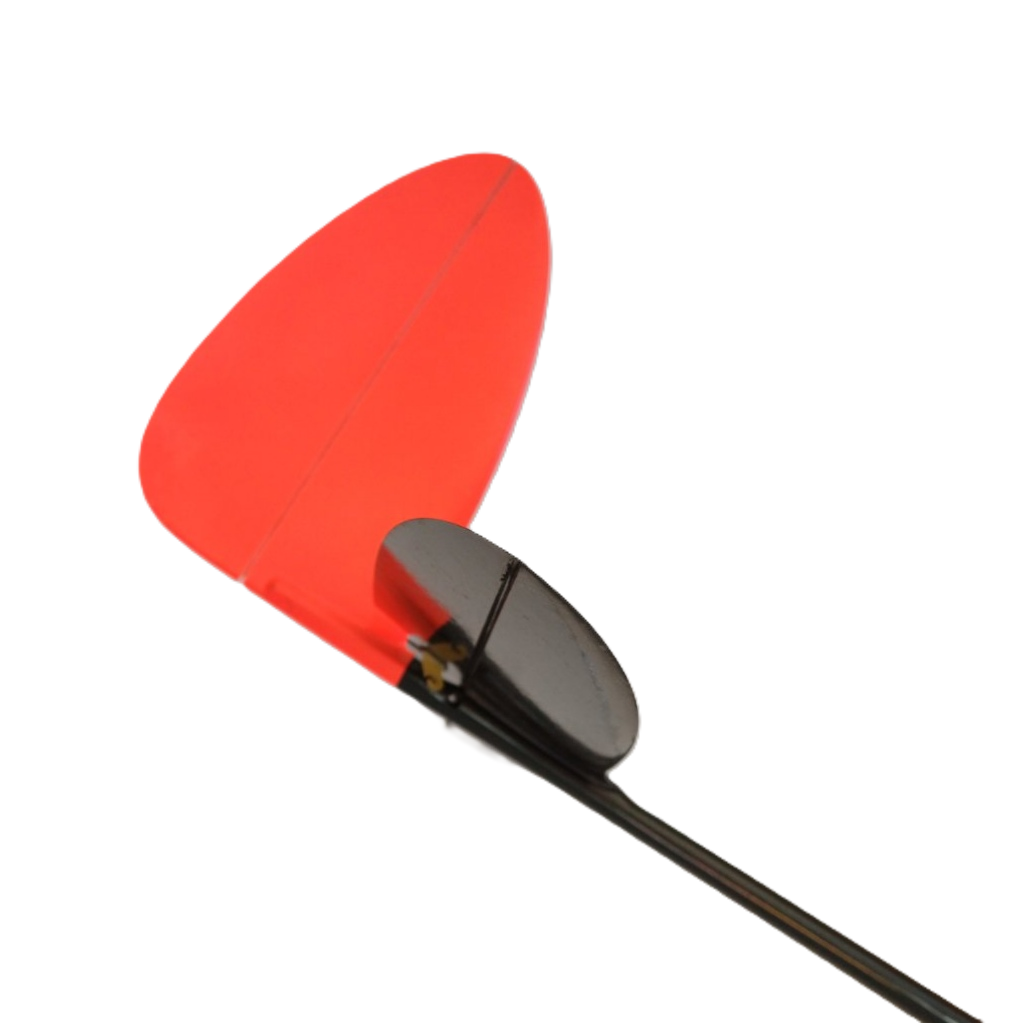

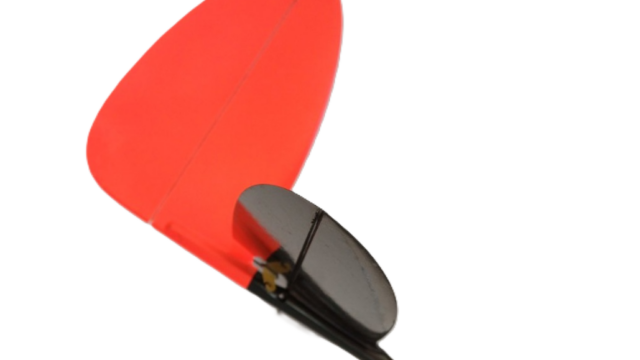

Pre-installed tail springs and levers
Compact wing storage case
Precision measuring tool for programming setup

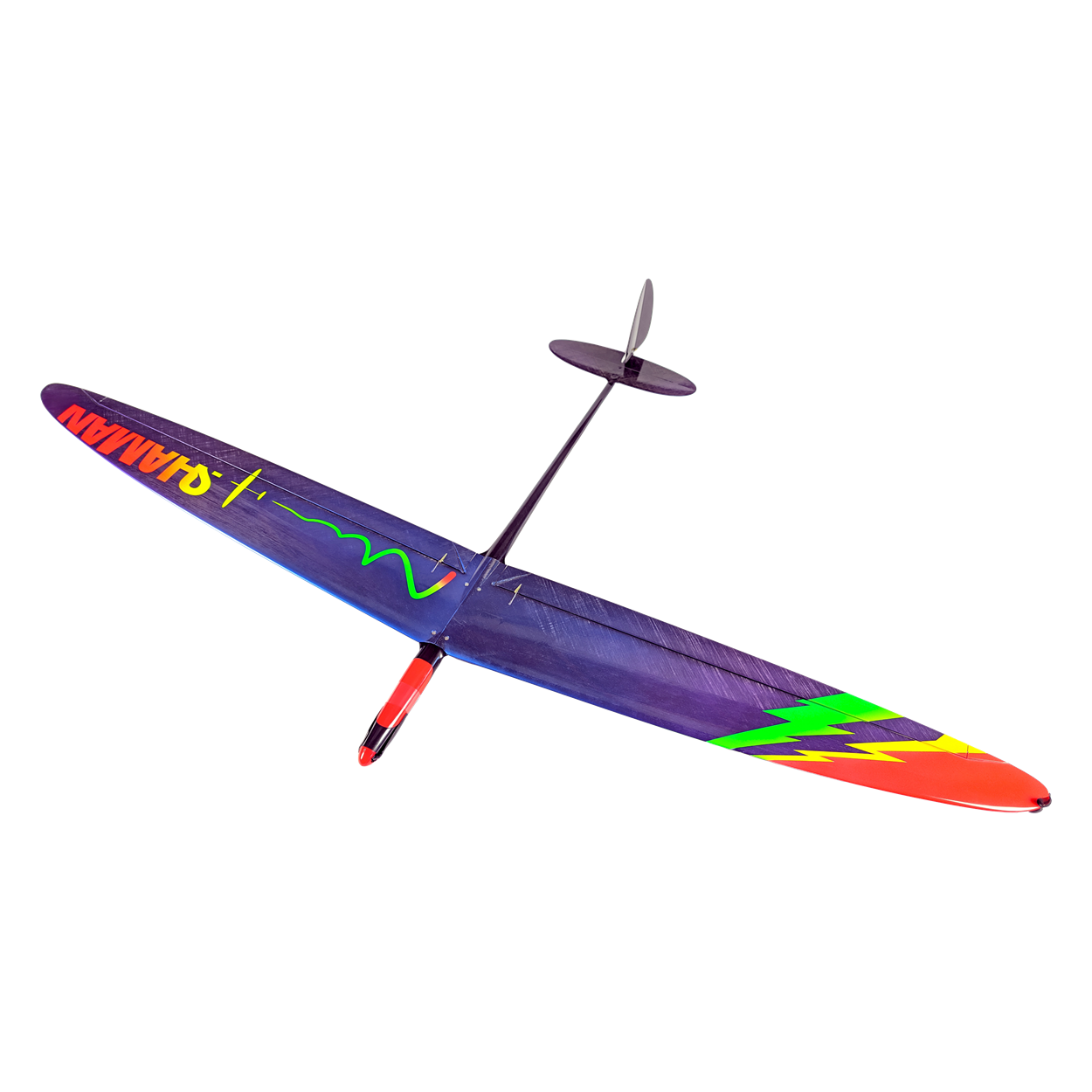

Design & Colours

Building Instructions

Ordering Options

Assembly Kit

Complete kit including:

Pull strings and control horns
Servo trays from fiberglass
Motor trays
Spring connectors
Templates for connector alignment
Screws for attaching the wings and tails to the body
Installation instructions
Other necessary hardware for completion – caps, vinyl pads, stickers for the caps

RTF Glider

Ready-to-fly configuration with installed: four ChaServo LV06 or HV06 servos, spinner and propeller

BNF Glider

Bind-N-Fly (excluding receiver and battery) adds1507-3650KV motor and 18A electronic speed controller.

Pricing

Build to order. Production time: 2-6 weeks.

Kit:

RTF:

BNF:

Prices are shown excluding VAT.
EU orders are subject to 20 % VAT (no customs duties). Orders outside the EU may be subject to local import taxes or customs fees.
Worldwide shipping available. Shipping cost is calculated individually depending on destination.

No payment required at this stage.

Request Order
